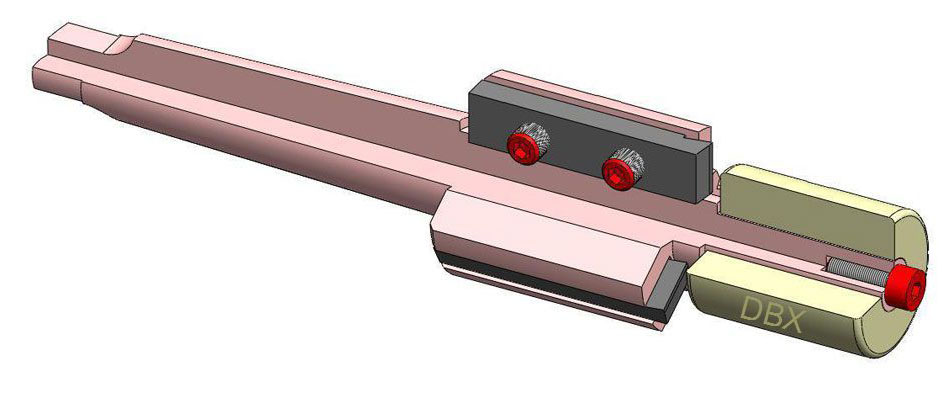

TEF FC Series
TEF FC Series
DOWNLOAD BROUCHERFeatures :
Ideally suited for facing tube ends projecting after expansion on heat Exchangers and condensers The rotating bell protects the surface of the tube sheet from machining mark. By changing pilot gauge one size of tool can be used for multiple thicknesses.
| Tube O.D. | Model No. | Morse Taper | ||
|---|---|---|---|---|
| mm | inch | |||
| 38.10 | 1.1/2 | FC-1500 | FC-1506-TB | |
| 41.27 | 1.5/8 | FC-1625 | FC-1625-TB | |
| 44.45 | 1.3/4 | FC-1750 | FC-1750-TB | |
| 47.62 | 1.7/8 | FC-1875 | FC-1875-TB | |
| 50.80 | 2 | FC-2000 | FC-2006-TB | |
| 57.15 | 2.1/4 | FC-2250 | FC-2250-TB | |
| 63.50 | 2.1/2 | FC-2500 | FC-2500-TB | |
| 69.85 | 2.3/4 | FC-2750 | FC-2750-TB | |
| 76.20 | 3 | FC-3000 | FC-3000-TB | |
| 82.55 | 3.1/4 | FC-3250 | FC-3250-TB | |
| 88.90 | 3.1/2 | FC-3500 | FC-3500-TB | |
| 95.25 | 3.3/4 | FC-3750 | FC-3750-TB | |
| 101.6 | 4 | FC-4000 | FC-4000-TB | |
