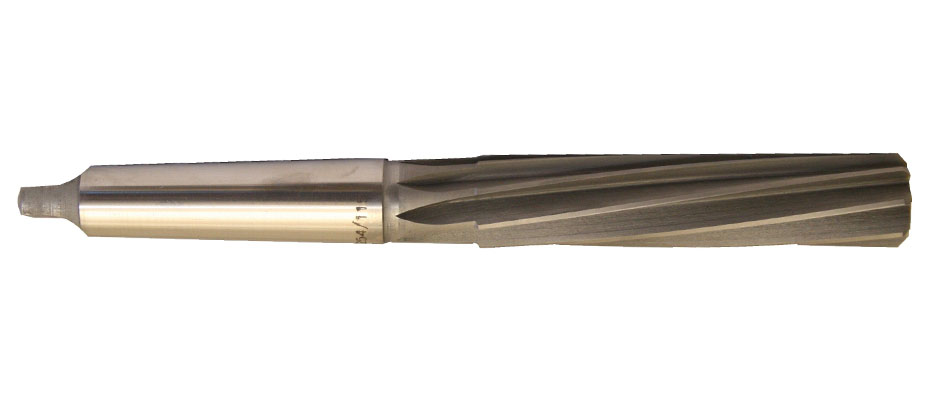

Tube Sheet Hole Reamer

Tube Sheet Hole Reamer

DOWNLOAD BROUCHER

Features :

Idle for machining grooves in tube sheet holes at heat Exchanger and condenser. Compact design for extreme rigidity, less run-out increased accuracy By applying light pressure to cut groove will get high production Designed to suit cnc machine.

O. D. Reamer Size to “TEMA” Spec. Model No. Tube I.D. OAL Shank:Morse Taper #
mm inch mm inch mm inch mm inch
9.53 3/8 9.65 0.380 RM-095/66 66 2.60 146 5.70
RM-095/101 102 3.97 181 7.12 1
RM-095/152 152 5.98 232 9.13
12.70 1/2 12.83 .505 RM-127/76 76 2.99 156 6.14
RM-127/101 101 3.97 181 7.12 1
RM-127/152 152 5.98 232 9.13
15.87 5/8 16.03 .631 RM-158/152 87 3.42 187 7.36
RM-158/152 152 5.98 252 9.92 2
RM-158/203 203 7.99 303 11.93
16.00 - 16.16 .636 RM-160/87 87 3.42 187 7.36
RM-160/152 152 5.98 252 9.92 2
RM-160/203 203 7.99 303 11.93
19.05 3/4 19.25 .758 RM-190/100 100 3.90 200 7.87
RM-190/152 152 5.98 252 9.92 2
RM-190/203 203 7.99 303 11.93
20.00 - 20.20 .795 RM-200/100 100 3.90 200 7.87
RM-200/152 152 5.98 252 9.92 2
RM-200/203 203 7.99 303 11.93
22.00 - 22.22 .875 RM-220/107 107 4.21 207 8.15
RM-220/152 152 5.98 252 9.92 2
RM-200/203 203 7.99 303 11.93
22.22 7/8 22.42 .883 RM-222/107 107 4.21 207 8.15
RM-222/152 152 5.98 252 9.92 2
RM-222/203 203 7.99 303 11.93
25.00 - 25.25 .994 RM-250/115 115 4.53 242 9.53
RM-250/203 203 7.99 330 12.99 3
RM-250/254 254 10.00 381 15.00
25.40 1 25.65 1.010 RM-254/115 115 4.53 242 9.53
RM-254/203 203 7.99 330 12.99 3
RM-254/254 254 10.00 381 15.00
28.57 1.1/8 28.86 1.136 RM-285/124 124 4.88 251 9.88
RM-285/203 203 7.99 330 12.99 3
RM-285/254 254 10.00 381 15.00
31.75 1.1/4 30.07 1.262 RM-317/133 133 5.23 293 11.53
RM-317/203 203 7.99 363 14.29 4
RM-317/254 254 10.00 414 16.30
