ST series
ST series
DOWNLOAD BROUCHERFeatures :

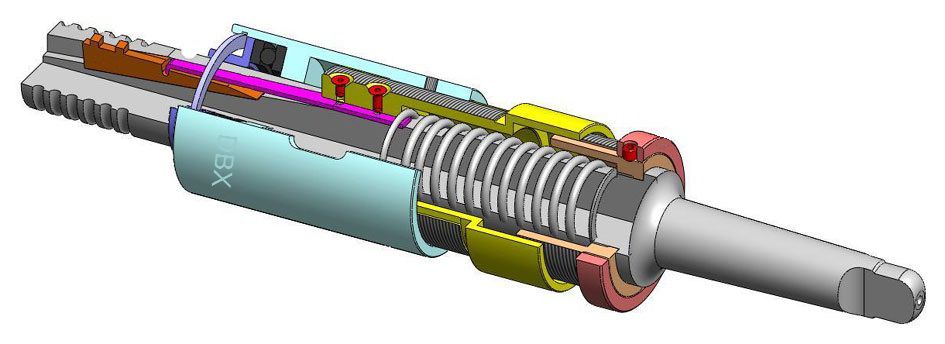

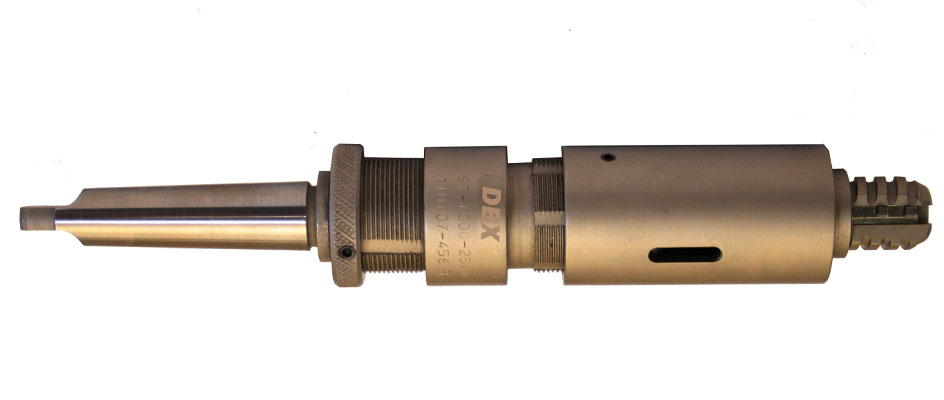

Idle for machining grooves in tube sheet holes at heat Exchanger and condenser. Compact design for extreme rigidity, less run-out increased accuracy By applying light pressure to cut groove will get high production Designed to suit cnc machine.
| Tube O.D. | Tool Model No. | Spare Tool Bits | |||
|---|---|---|---|---|---|
| mm | inch | 1/8” x 3/8” x 1/8” Spacting | 1/8” x 3/8” x 1/8” Spacting | Special Spacing | |
| 9.53 | 3/8 | ST-375-970 | ST-3703 | ST-3703-S | ST-3703-SPEC |
| 12.70 | 1/2 | ST-500-1270 | ST-5003 | ST-5003-S | ST-5003-SPEC |
| 15.87 | 5/8 | ST-625-1588 | ST-6203 | ST-6203-S | ST-6203-SPEC |
| 19.05 | 3/4 | ST-750-1900 | ST-7503 | ST-7503-S | ST-7503-SPEC |
| 22.22 | 7/8 | ST-875-2220 | ST-8753 | ST-8753-S | ST-8753-SPEC |
| 25.40 | 1 | ST-1000-2540 | ST-10003 | ST-10003-S | ST-10003-SPEC |
| 31.75 | 1.1/4 | ST-1250-3175 | ST-12503 | ST-12503-S | ST-12503-SPEC |
| 38.10 | 1.1/2 | ST-1500-3810 | ST-15003 | ST-15003-S | ST-15003-SPEC |
| 50.80 | 2 | ST-2000-5080 | ST-20003 | ST-20003-S | ST-20003-SPEC |
| 63.50 | 2.1/2 | ST2500-6350 | ST-25003 | ST-25003-S | ST-25003-SPEC |
