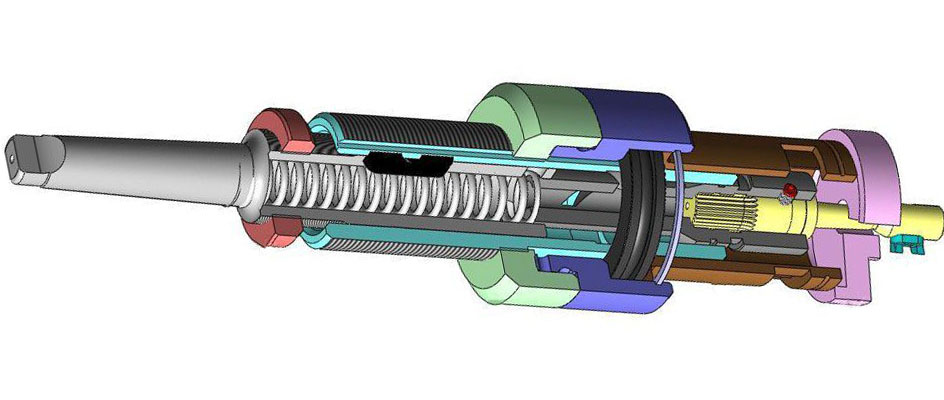

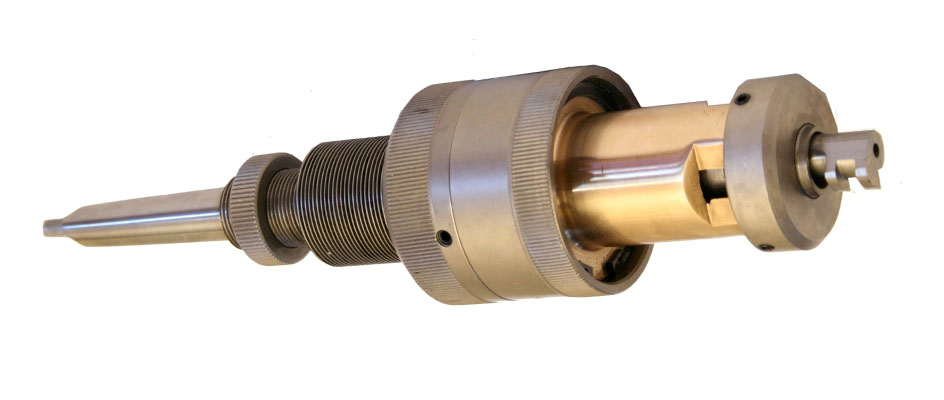

NW series

NW series

DOWNLOAD BROUCHER

Features :

Standard interchangeable pilot nose assemblies and stop collars quickly adapt one tool to pilot either in the work or in the fixture bushing. Changing of pilot nose and cutter allows one tool to cover a range of hole diameter. Simple to change cutter for different groove shapes. Location and depth of cut easy to adjust.Only light pressure required to cut precision groove .Ready to fit to drill machines, lathes and boring machine. The life of the cutter will be extendable by re sharpening.

Bore Range Tool Model No. Pilot Nose Model No. Circular Form Cutter Model No. Tool Bit Holder Model No. Spare Tool Bit Model No.
mm inch
9 - 32 3/8 - 1.1/4 1 NW - 2 MT 1 NW - PN 1 NW - CF 1 NW - TBH 1 NW - TB
16 - 45 5/8 - 1.3/4 3 NW - 3 MT 3 NW - PN 3 NW - CF 3 NW - TBH 3 NW - TB
19 - 48 3/4 - 1.7/8 4 NW - 4 MT 4 NW - PN 4 NW - CF 4 NW - TBH 4 NW - TB
38 - 102 1.1/2 - 4 6 NW - 5 MT 6 NW - PN 6 NW - CF 6 NW - TBH 6 NW - TB
