FM 1625
FM 1625
DOWNLOAD BROUCHERFeatures :

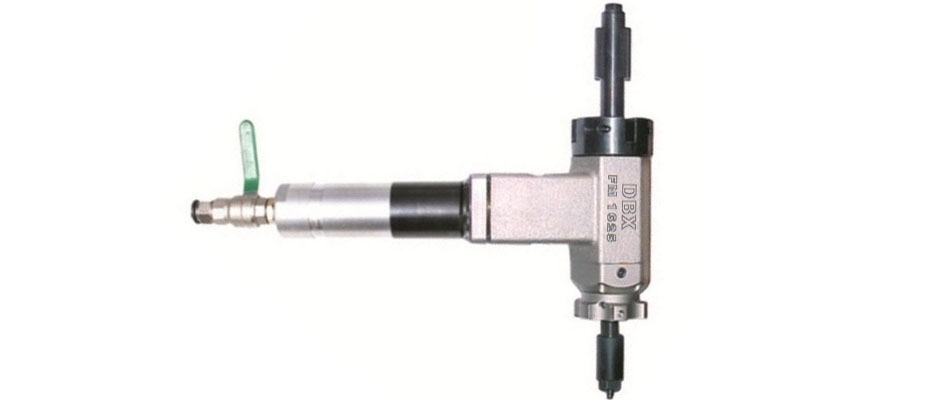

FM- 1625 The little player FM-1625 is light weight yet powerful machine. Use of FM-1625 for Facing, beveling and weld preparation is easier due to its compact design and quick set up. Slim body design makes this machine the best choice for use in restricted access area and close clearance jobs. Commonly used during shutdown of Heat Exchangers, Condenser and Piping industries.
| Drive | Pneumatic | Electric |
|---|---|---|
| ID Locking Range (mm) | 20 - 42 | 20 - 42 |
| Torque (Nm) | 27.5 | 45.5 |
| Ideal Speed (RPM) | 400 | 250 |
| Feeding Stroke (mm) | 23 | 23 |
| Electric Power (watts) | - | 650 |
| Pneumatic Power (HP) | 0.60 | - |
| Air Consumption (cfm) | 16 | - |
| Air Pressure (psi) | 90 | - |
| Weight (kg) | 5.5 | 5.5 |
