FM 4500
FM 4500
DOWNLOAD BROUCHERFeatures :

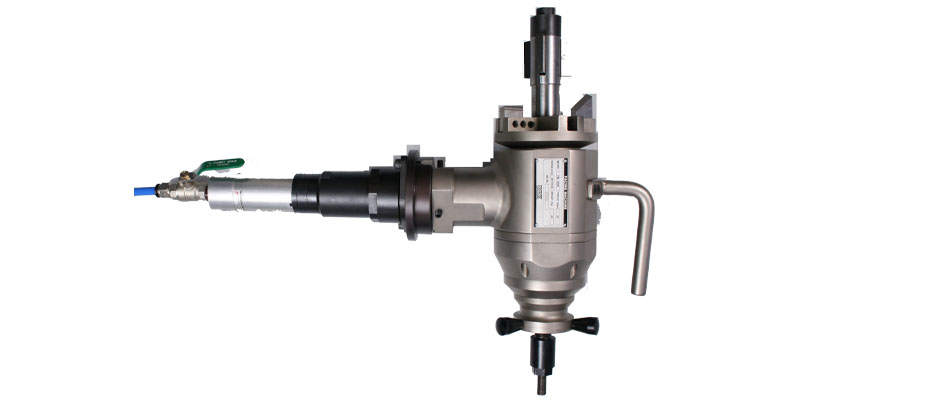

FM- 4500 The DFM-4500 is designed to cover all the boiler pipe range and above. Designed to handle tough heavy wall tubes. Rugged and powerful machine also finds its use for seal weld removal in boilers tubes. Commonly used during shutdown of Boilers and Piping industries.
| Drive | Pneumatic | Electric |
|---|---|---|
| Locking Range (mm) | 39-104 | 39-104 |
| Torque (Nm) | 220 | 240 |
| Ideal Speed (RPM) | 60 | 60 |
| Feeding Stroke (mm) | 40 | 40 |
| Electric Power (watts) | - | 1800 |
| Pneumatic Power (HP) | 1.3 | - |
| Air Consumption (cfm) | 40 | - |
| Air Pressure (psi) | 90 | - |
| Weight (kg) | 21.0 | 23.0 |
