1200-5 Series
DOWNLOAD BROUCHERFeatures :

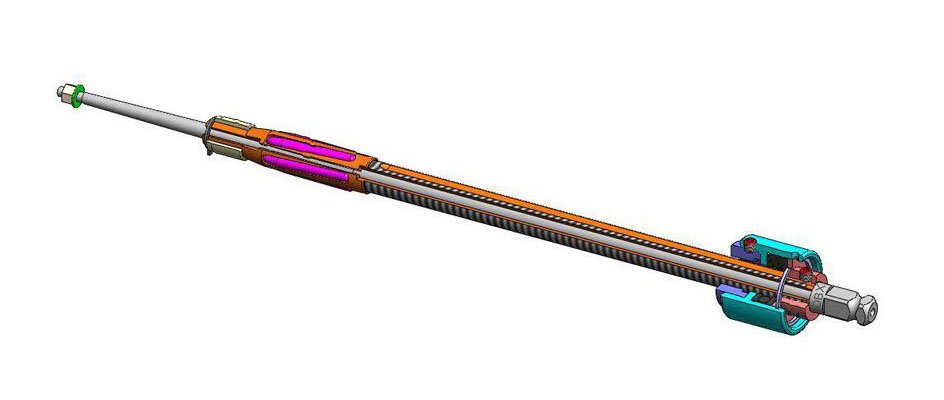

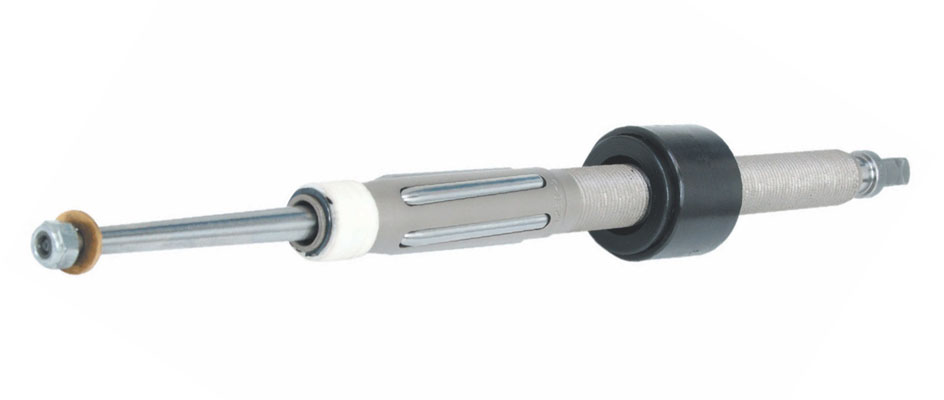

Similar as 800 series expanders this 1200 series expander is also a workhorse in its category. Most world wide usage of this tool is due to its superior and economical performance. Its is mostly used for larger expansion length in thick tube sheet. It can cover expansion length up to 320mm in step by step expansion in which each step can be of 50 mm max.
| For Tube Sheet Adjustable Range | |||
|---|---|---|---|
| Tube Expander Fitted With Roller Length | Minimum A | Miximum B | |
| (38.1mm) 1.1/2"
|
STD REACH
|
(38.1mm) 1.1/2"
(38.1mm) 1.1/2" (38.1mm) 1.1/2" (38.1mm) 1.1/2 |
(152.4mm) 6"
(203.2mm) 8" (253.8mm) 10" (304.6mm) 12" |
| (57.1mm) 2.1/4" |
STD REACH
|
(57.1mm) 2.1/4"
(57.1mm) 2.1/4" (57.1mm) 2.1/4" (57.1mm) 2.1/4 |
(171.4mm) 6.3/4"
(222.1mm) 8.3/4" (272.8mm) 10.3/4" (323.6mm) 12.3/4" |
