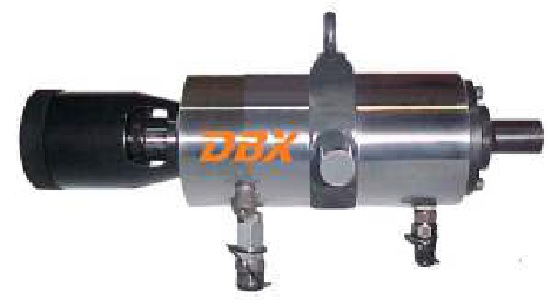

Master Tugger
Master Tugger
DOWNLOAD BROUCHERFeatures :
1) Simple and robut operation.
2) Very little of the operator needed. set up in less than a minute.
3) High pressure pump for pulling toughest jobs.
4) Compact and lightweight gun and powerpack
5) Removes Tube without damage
5) Low set up time / ease of operataion
6) Available with choice of eletric / pneumatic opertaion
7) Automatic switchover from low pressure to high pressure
8) Interchangable pulling gun accessories compatiable with existing system on the market
9) Single man opertaion

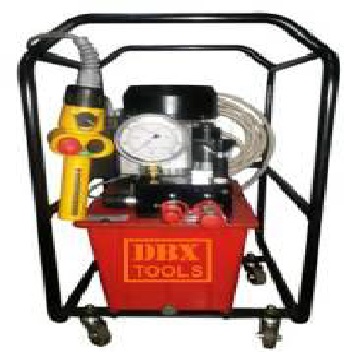

TUBE PULLING POWERPACK - SPECIFICATION
| Model | Volts/ Phase | Power hp | Oil Tank Capacity ltrs. | Net Wt.kgs. |
|---|---|---|---|---|
| STPP-300 | 230 / 1 | 3 | 10 | 68 |
STPP-300 (Pneumatic) |
- | - | 10 | 65 |
HYDROULIC TUBE PULLING GUNS - SPECIFICATION
| Gun Model | Pulling Capacity tons |
Max. Tubes O.D. Thru Gun inch |
Stub Pulling Capacity inch |
|---|---|---|---|
| SHPG-15 | 15 | 1 | 1.1/2 |
| SHPG-30 | 30 | 1.1/2 | 3 |
| SHPG-45 | 45 | 3 | 4 |
