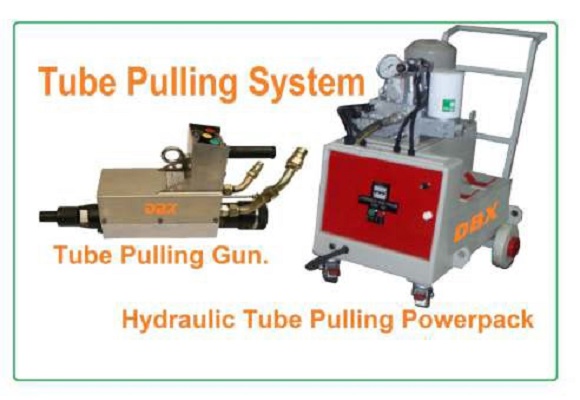

TUBE PULLING POWERPACK & TUBE PULLING GUNS
Continues Tube Puller
DOWNLOAD BROUCHERFeatures :

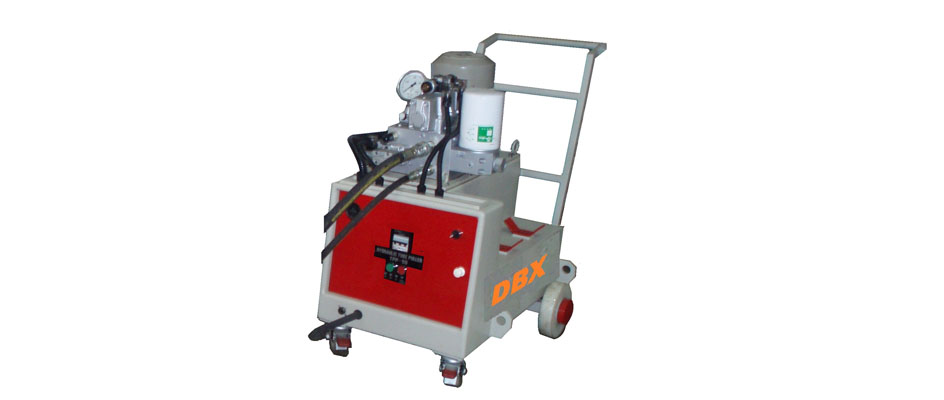

1) MODEL: TPP-50 (Electric) Pump
TUBE PULLING POWERPACK - SPECIFICATIONS
| Model | Motor | Volts/Phase | Power hp | Oil Tank Capacity ltrs. | Net Wt.kgs. | Dim.mm | Air Supply | Hyd.Hoses Size x Length inch x mtrs |
|---|---|---|---|---|---|---|---|---|
| TPP-50 | Siemens | 415 / 3 | 5 | 90 | 220 | 1200 x 750 x 990 | - | 1/2”x5 & 3/4”x5 |
Features :

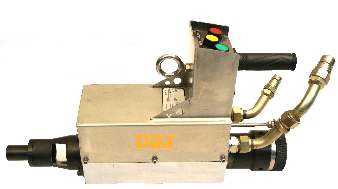

2) HYDRAULIC TUBE PULLING GUNS (ELECTRIC)
HYDRAULIC TUBE PULLING GUNS - SPECIFICATIONS
| Gun Model | Pulling Capacity | Max.Tube O.D. Thru Gun | Stub Pulling Capacity | Weight | Free Pulling Speed (meter/min) with | |||
|---|---|---|---|---|---|---|---|---|
| tons | inch | inch | kgs. | lbs. | TPP-50 | TPP-30 | PPP-50 | |
| HPG-15 | 15 | 1 | 1.1/2 | 26 | 57 | 5.2 | 1.8 | 5.6 |
| HPG-30 | 30 | 1.1/2 | 3 | 38 | 84 | 3.0 | 2.4 | 3.5 |
| HPG-45 | 45 | 3 | 4 | 78 | 172 | 2.0 | 2.0 | 2.3 |
