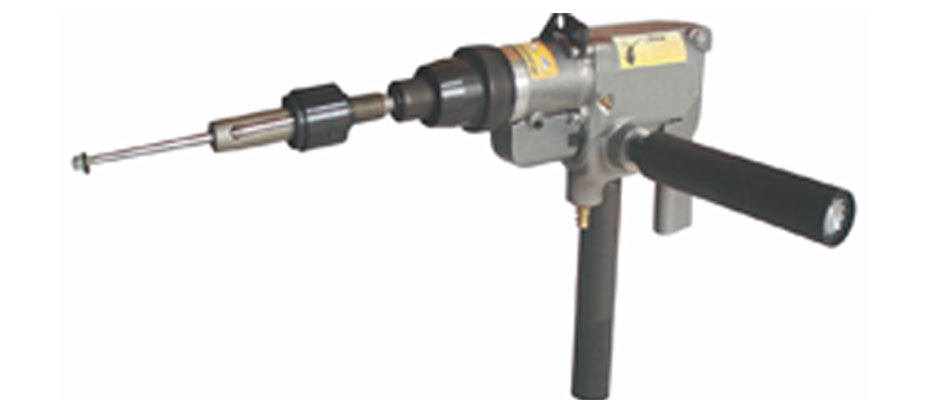

Pneumatic Expansion Drive
Pneumatic Expansion Drive
DOWNLOAD BROUCHERFeatures :
Light weight aluminum body. Ergonomically perfect pusj/pull throttle. Automatically stop tube expansion at predefined setting. Precise control measures torque output
| Model Number | Free Speed rpm | Min Torque nm | Max Torque nm | Tube Capacity inch | Air Consumptions l/min | Weight Kg. |
|---|---|---|---|---|---|---|
| 850-1250 | 1250 | 1.58 | 12.20 | 3/4 | 1700 | 4.80 |
| 850-600 | 600 | 2.49 | 21.81 | 1 | 1700 | 4.80 |
| 850-400 | 400 | 5.00 | 36.00 | 1.1/4 | 1700 | 4.80 |
