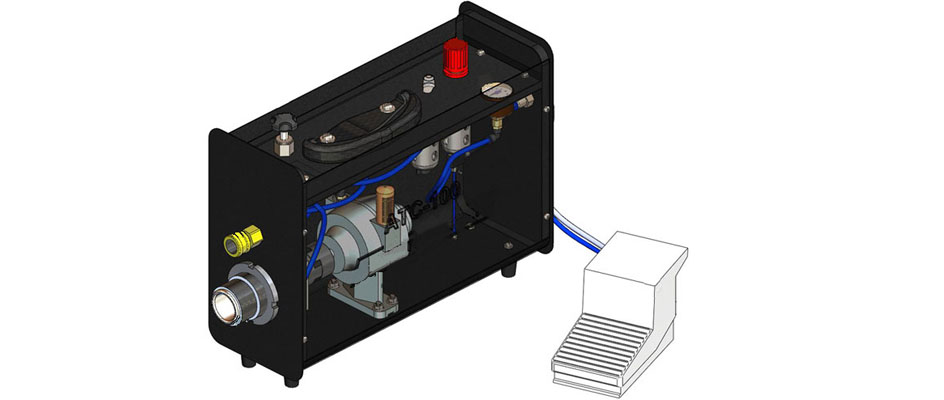

Pneumatic Portable Trolly

Pneumatic Portable Trolly

DOWNLOAD BROUCHER

Features :

Shock Resistant - Excellent for applications where use of electric equipment is hazardous. Versatile - Interchangeability of different size flexible shafts and cleaning tools. Speed/Torque control - Shaft rotation speed can be set at optimum for each application. No Tooling - Quick disconnection of flexible shaft. Time Saving - Simultaneous water flush to remove deposits from tubes. Cleanliness - Foot switch for operator's convenience to activate both shaft rotation and water flow to reduce water consumption and making working area clean. Compact - Light weight easy to operate inside drum.

Tube I.D. Tube Cleaner Model No. Motor Power Motor Speed RPM Air Supply Weight Dimension
mm inch HP kW Min Max lbs. Kg. High Wide Deep
6.4 & UP 1/4 & UP ATC-100 1.7 1.1 300-3000 60psi @ 15cfm 100psi @ 70cfm 26 12 10.3/8”(655mm) 6”(152mm) 19”(483mm)
